Galvi Drum Brakes Supplied by Vento
Vento Industrial Solutions are proud distributors of Galvi Drum Brakes.

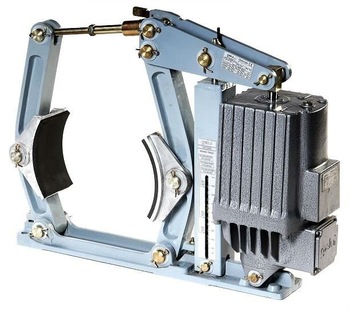

Galvi Drum Brakes are one of the oldest brake designs and are still popular and economical.
Brake Drum sizes starting from 160mm dia up to 630mm dia with adjustable torque and equipped with Hydraulic Thrusters, for many years these reliable brakes were the main choice for Equipment Manufacturers.
Drum brakes are available with a variety thruster options for different torques as well as Stainless steel pins and automatic wear adjusters.
Product range
Why specify Vento
- Authorised Galvi distributor for South Africa
- Full 160 / 200 / 250 / 315 / 400 / 500 / 630 mm range
- Hand-release, microswitches and lining wear sensors supported
- Spare thrusters, springs and lining kits held in Pinetown
Frequently asked questions
- How do I size a Galvi drum brake?
- Sizing is driven by required braking torque, drum diameter on the drive shaft, ambient temperature and duty cycle. Our engineers can size the brake from your motor power, gearbox ratio and required deceleration.
- What is the difference between AC and DC thruster brakes?
- AC thrusters (most common in Galvi range) use an oil-immersed impeller to lift the brake. DC thrusters give a faster response and are used where braking time is critical.

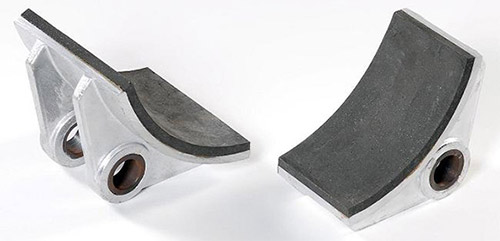

- Do you supply replacement brake linings?
- Yes — full lining sets for every Galvi drum size are available, including high-temperature compounds for steel and cement plant duty.
